Custom keyboard design notes
Fitting notes

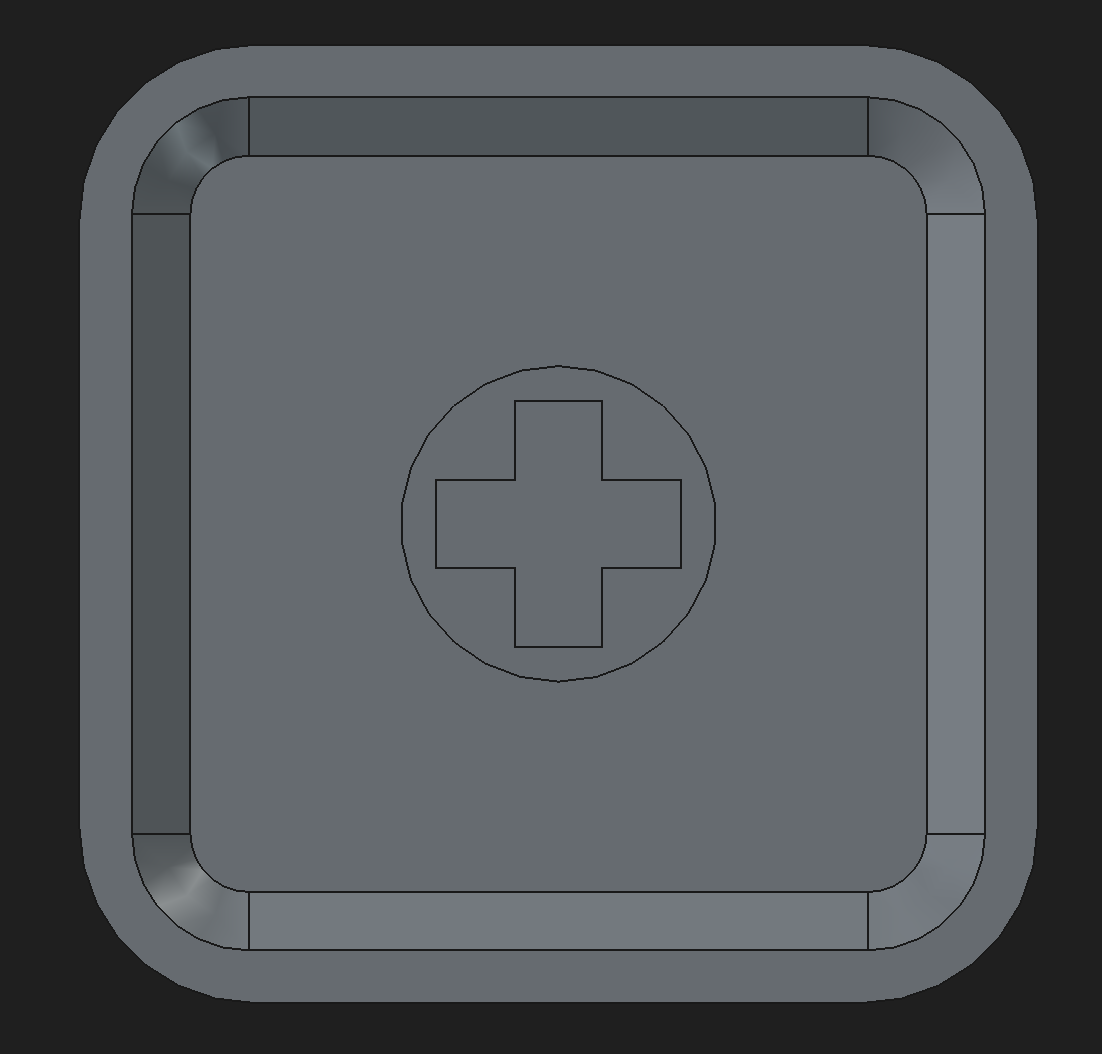

KS-33 & KS-9 [P1S Nozzle 0.4mm]
4.20MM x 1.50MM (+ Dimensions) Height: 3.70MM Radius: 2.70MM
Printed using Bambu Studio Defaults (0.20mm Standard @BBL X1C)
I preferred the fitting using the 0.2mm nozzle.

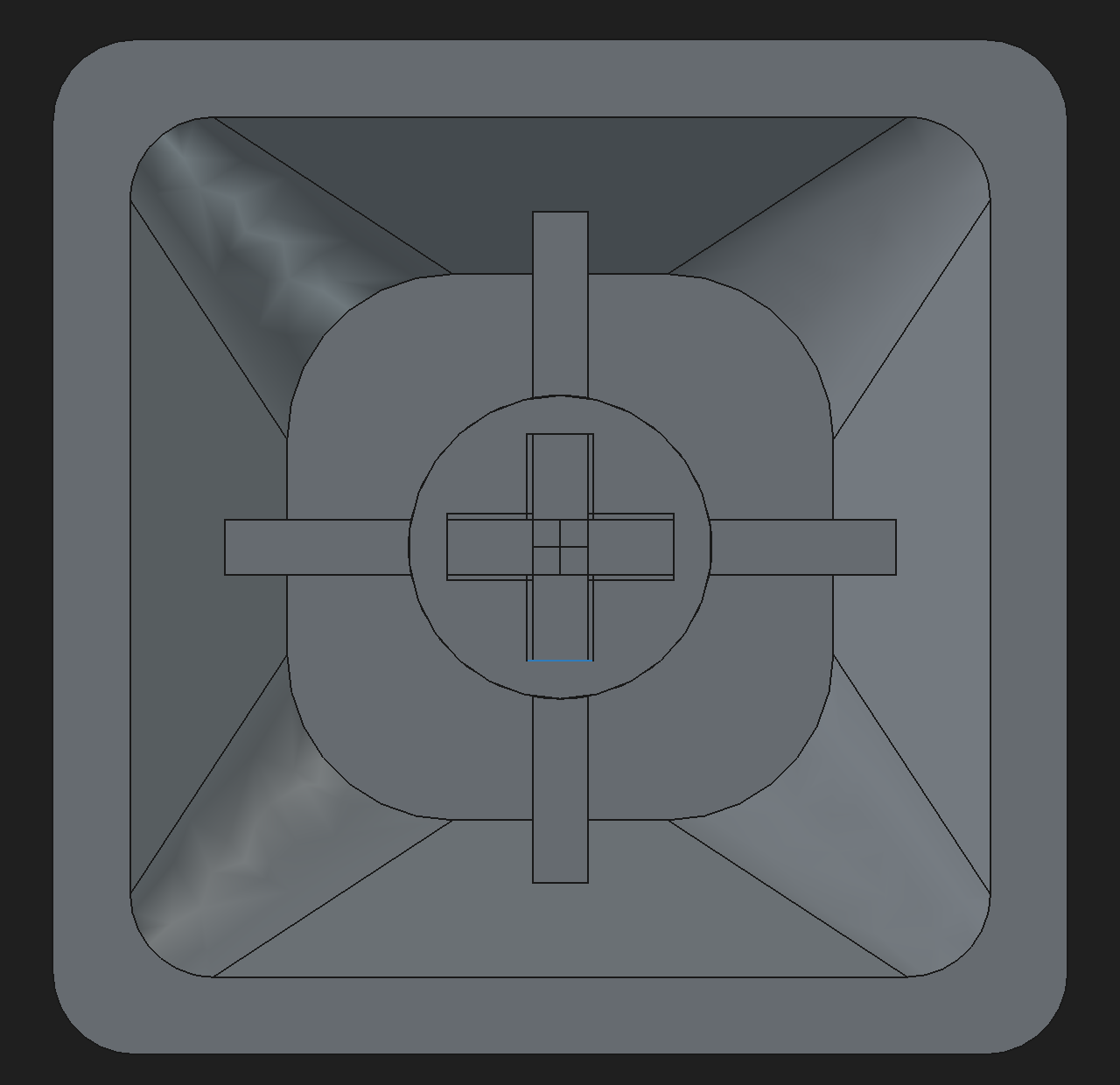

KS-33 & KS-9 [A1 Mini Nozzle 0.2mm]
This design was generated using Claude Code leveraging the powerful FreeCAD Python scripting engine.
Fitment:
- KS-33 (Tight fit)
- KS-9 (Very tight fit)
4.10MM x 1.20MM (+ Dimensions) Height: 4.00MM Radius: 2.75MM

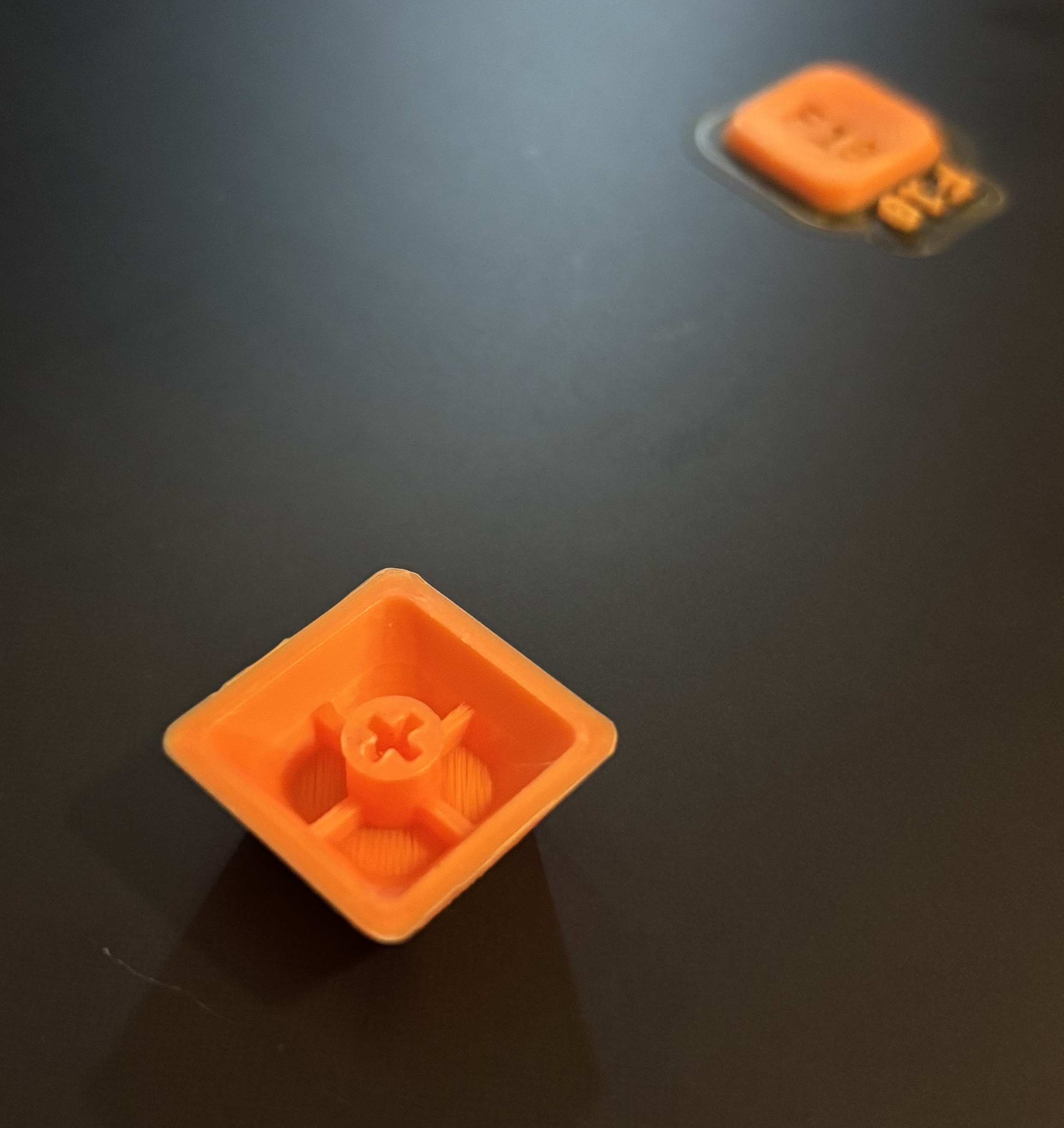

Result:
Printing text & symbols
Print insets using A1 Mini with 0.2MM nozzle.
Bambu Studio Settings: 0.10mm Standard @BBL A1M 0.2 nozzle
Speed Overrides: (Can be tuned even slower for higher detail)
- Initial Layer: 8mm/s
- Initial layer infill: 14mm/s
Brim Settings:
- Enable Outer & Inner Brim at 3mm
- Gap: 0mm

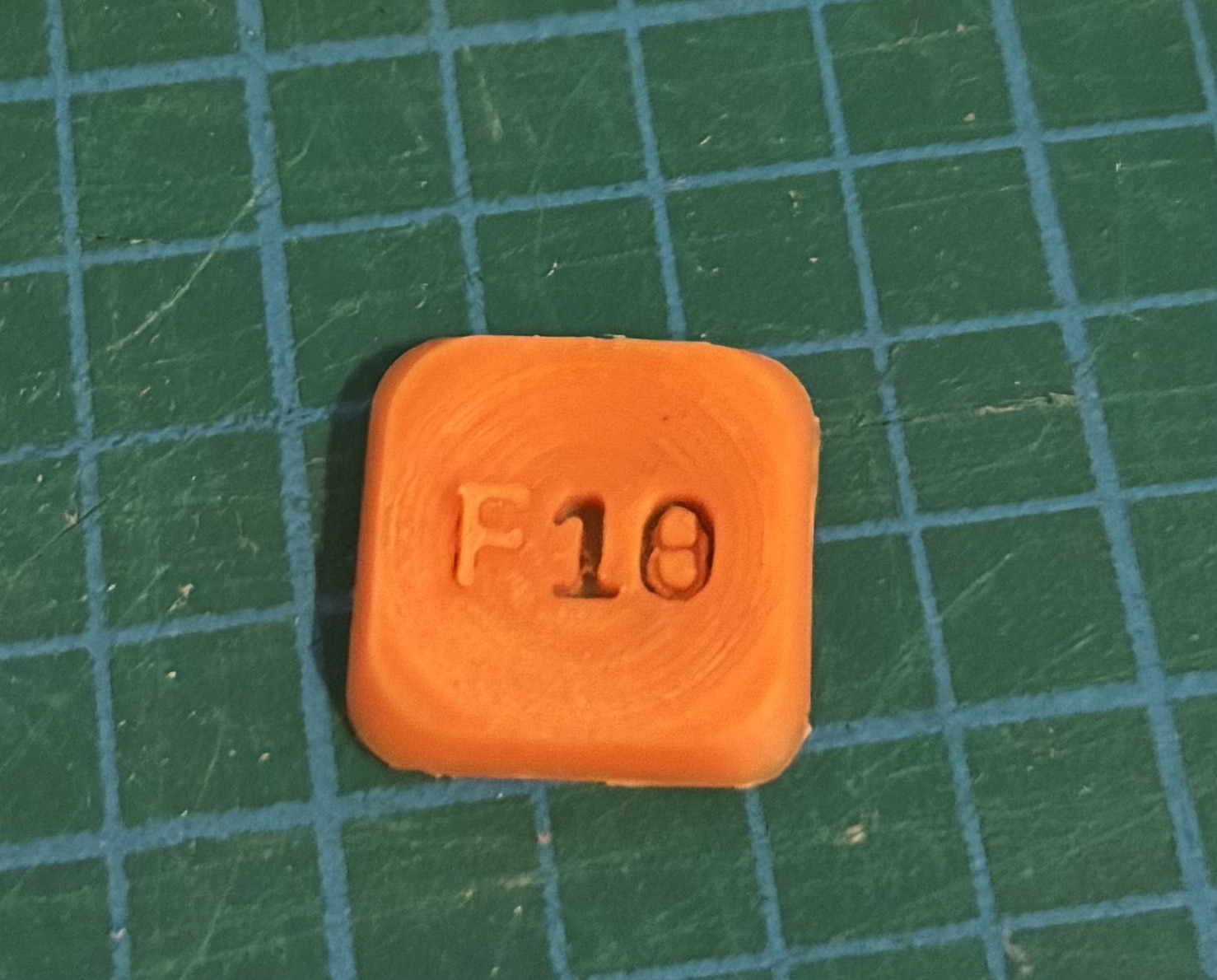

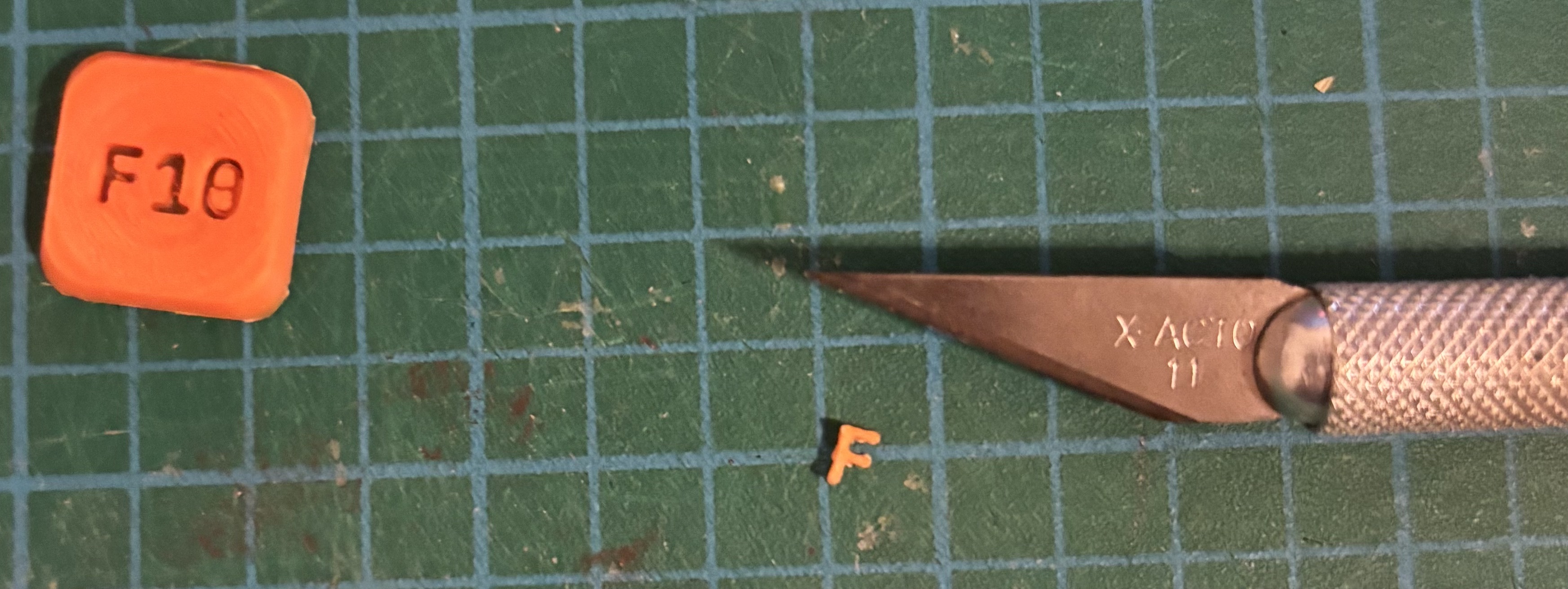

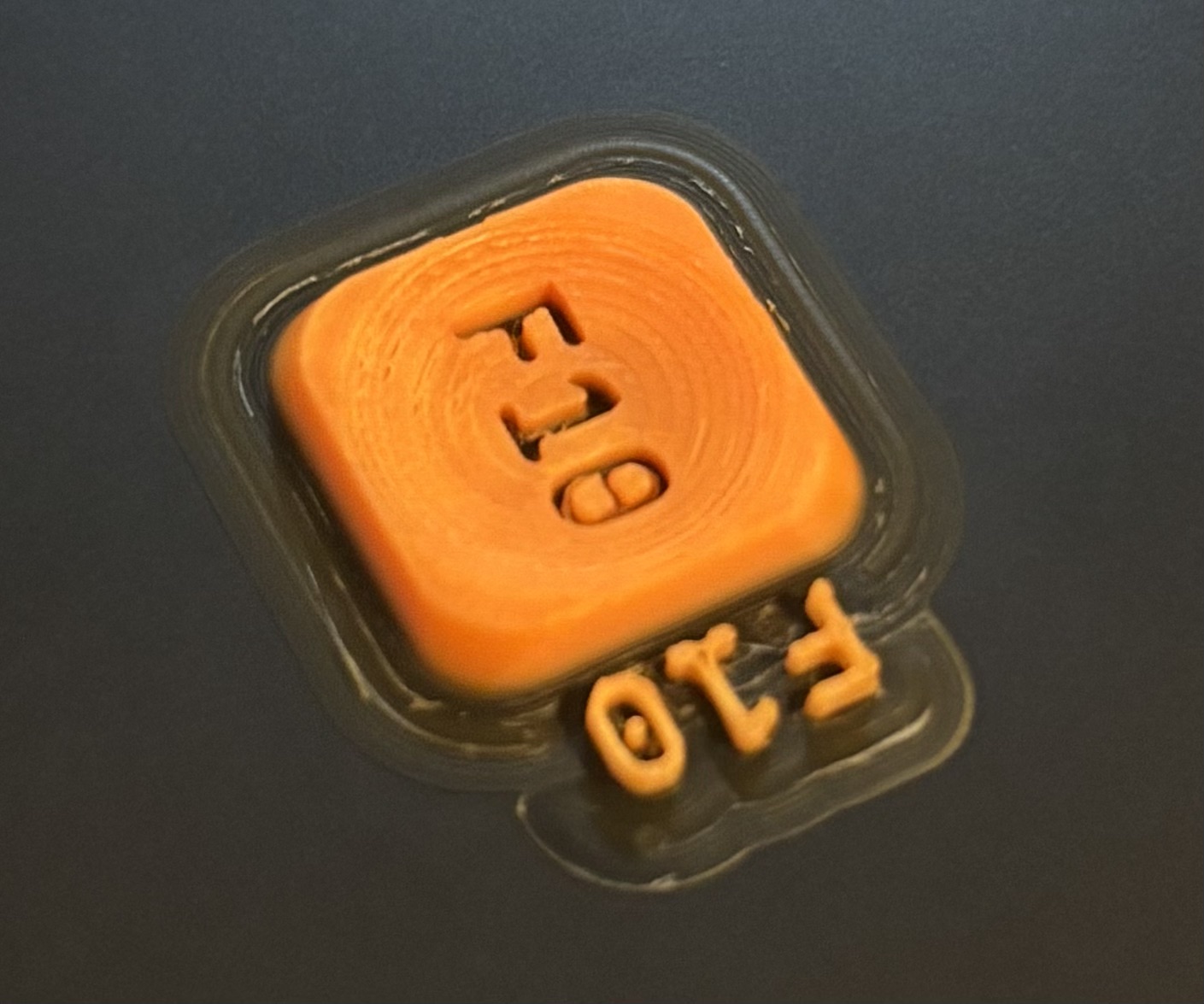

Result:
Note: Removing the brim was quite difficult.

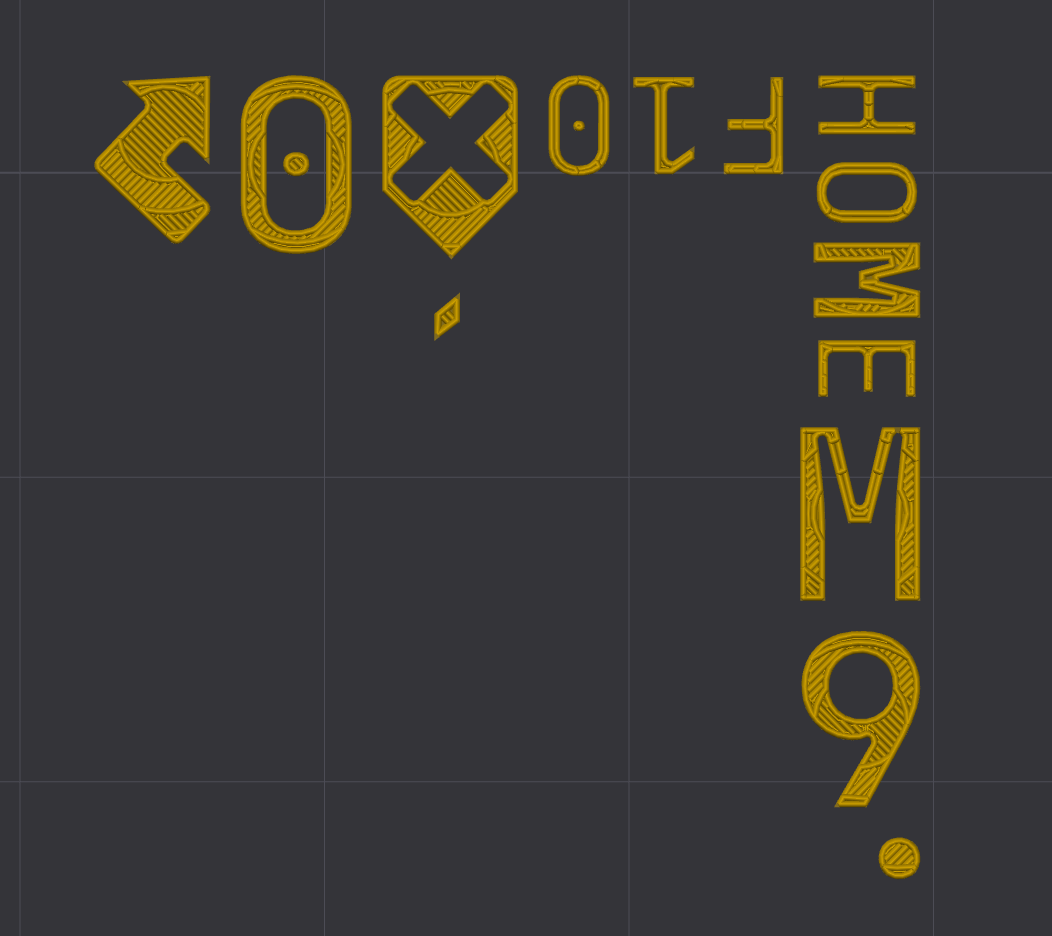

Test without brim
Speed:
- Initial layer: 4mm/s
- Initial layer infill: 8mm/s

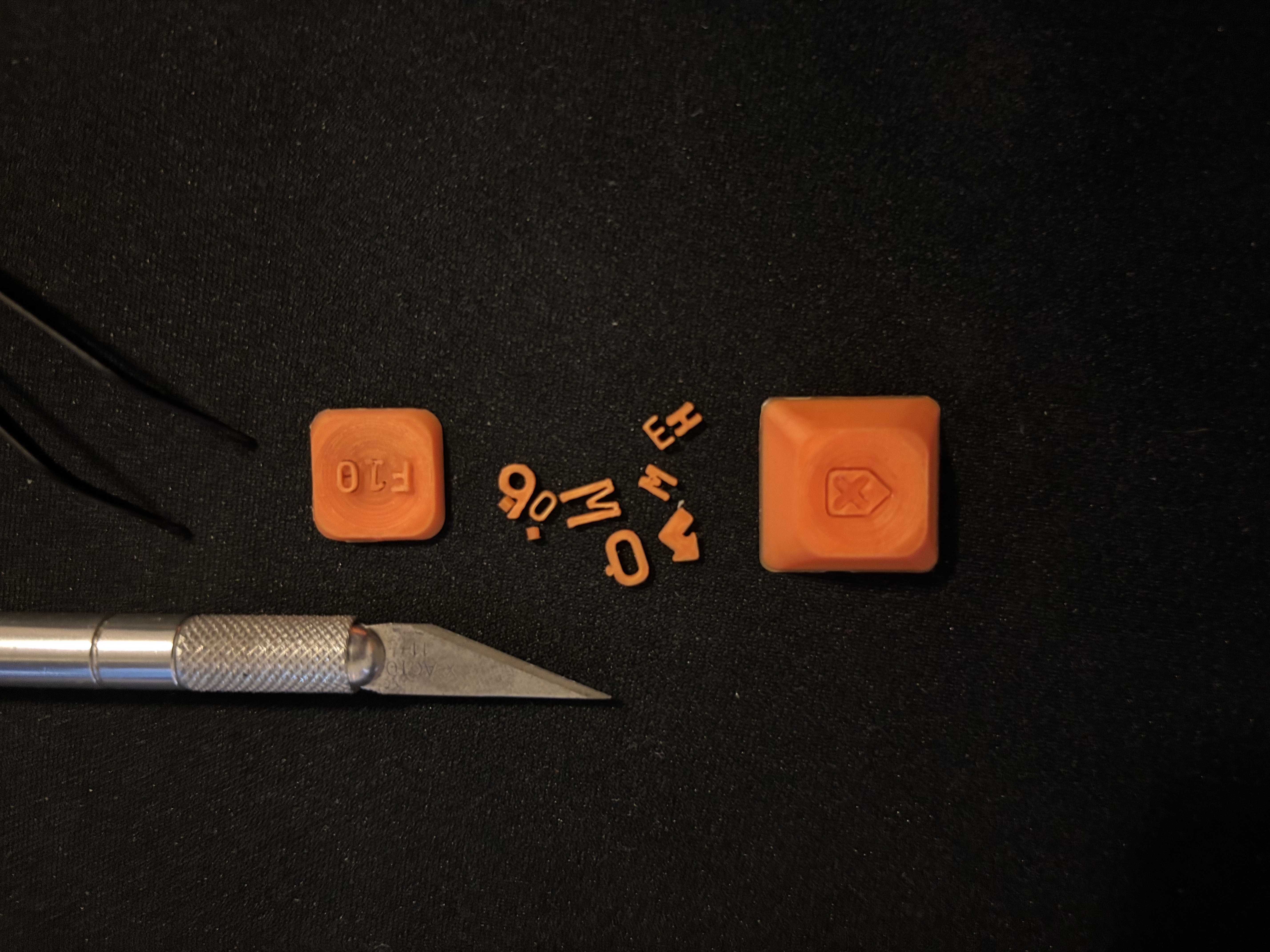

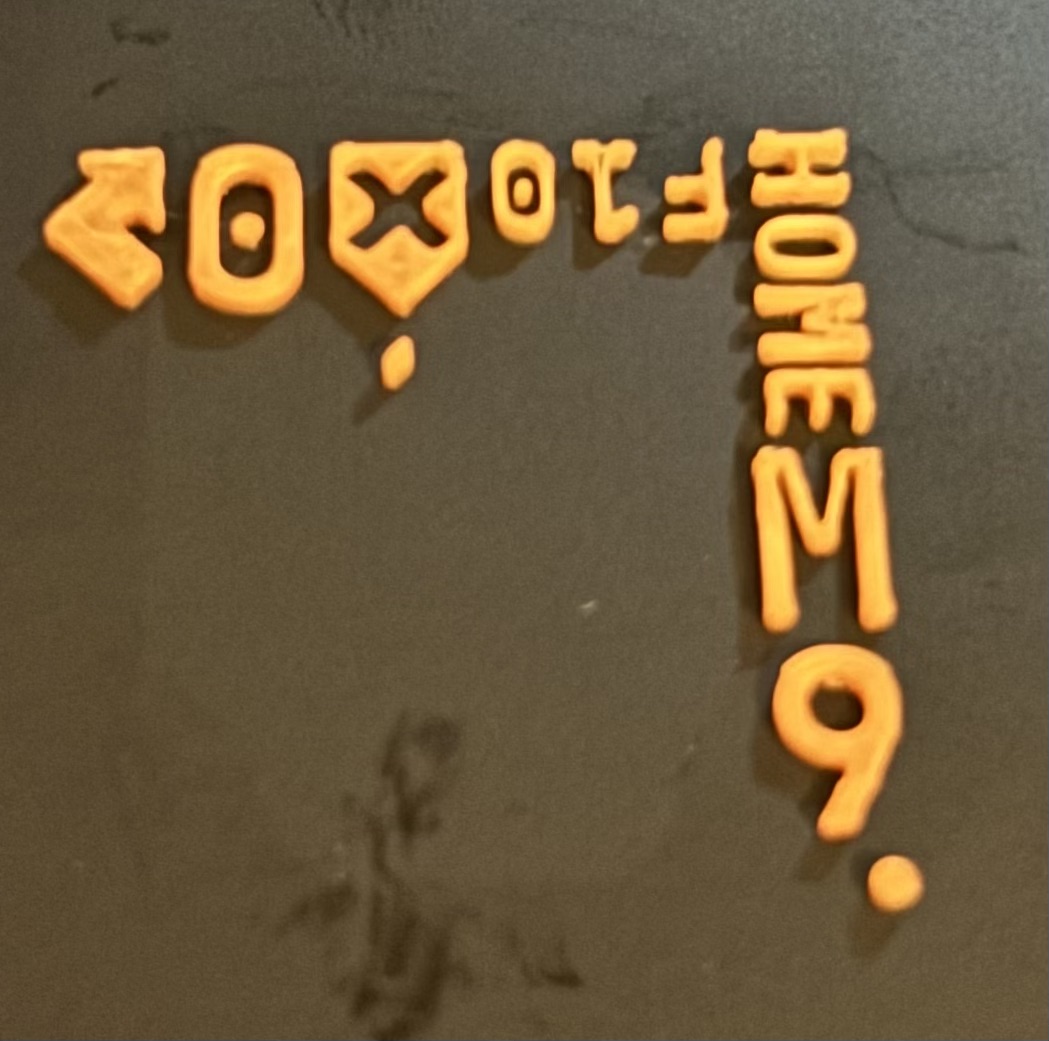

Result:
Took ~6 minutes
